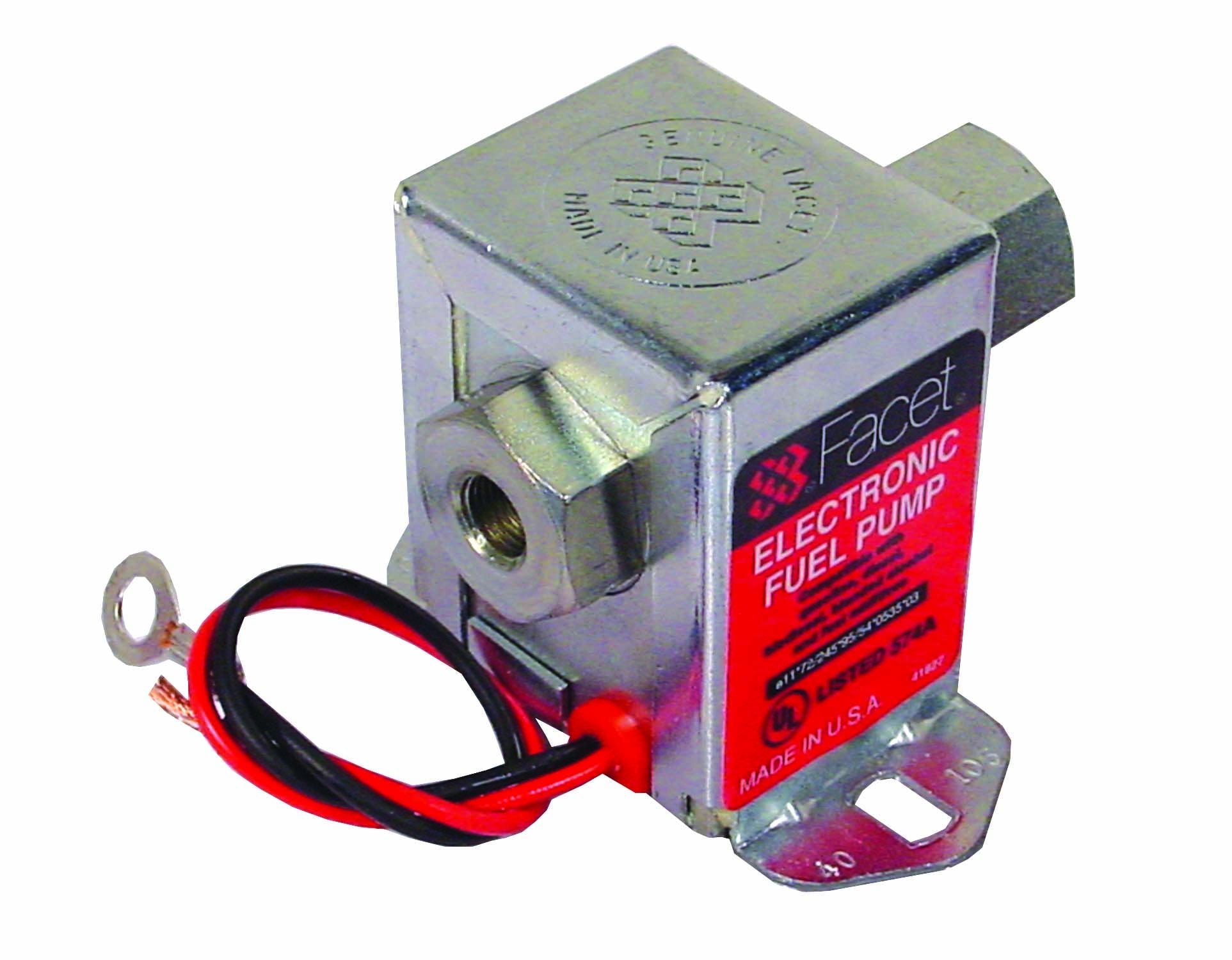

Facet 40105 Solid State Fuel Pump
These solid-state technology electronic fuel pumps provide outputs up to 132.5 liters/hour and .68 bar. Facet/Purolator Cube Fuel Pumps are self-priming with a gerneral dry lift capacity 0.3 metres. Two universal models provide complete coverage for all low and high-pressure carburetor applications for cars, vans, RVs, and light trucks, in addition to many diesel applications. All models of the Facet/Purolator Cube Fuel Pumps are compatible with gasoline, diesel, biodiesel, blended alcohol fuels, and fuel additives.
Specification:- Road
Pump:- 40105
Voltage:- 12v
Earth:- Neg
Pressure (Psi):- 3.0-4.5
Flow:- US Gallons/Hr 30
Dry Prime Height in Mtrs:- 0.3
Thread Size:- 1/8th nptf
Average Run Time or MTBF:- 6000 hrs
Additional items:

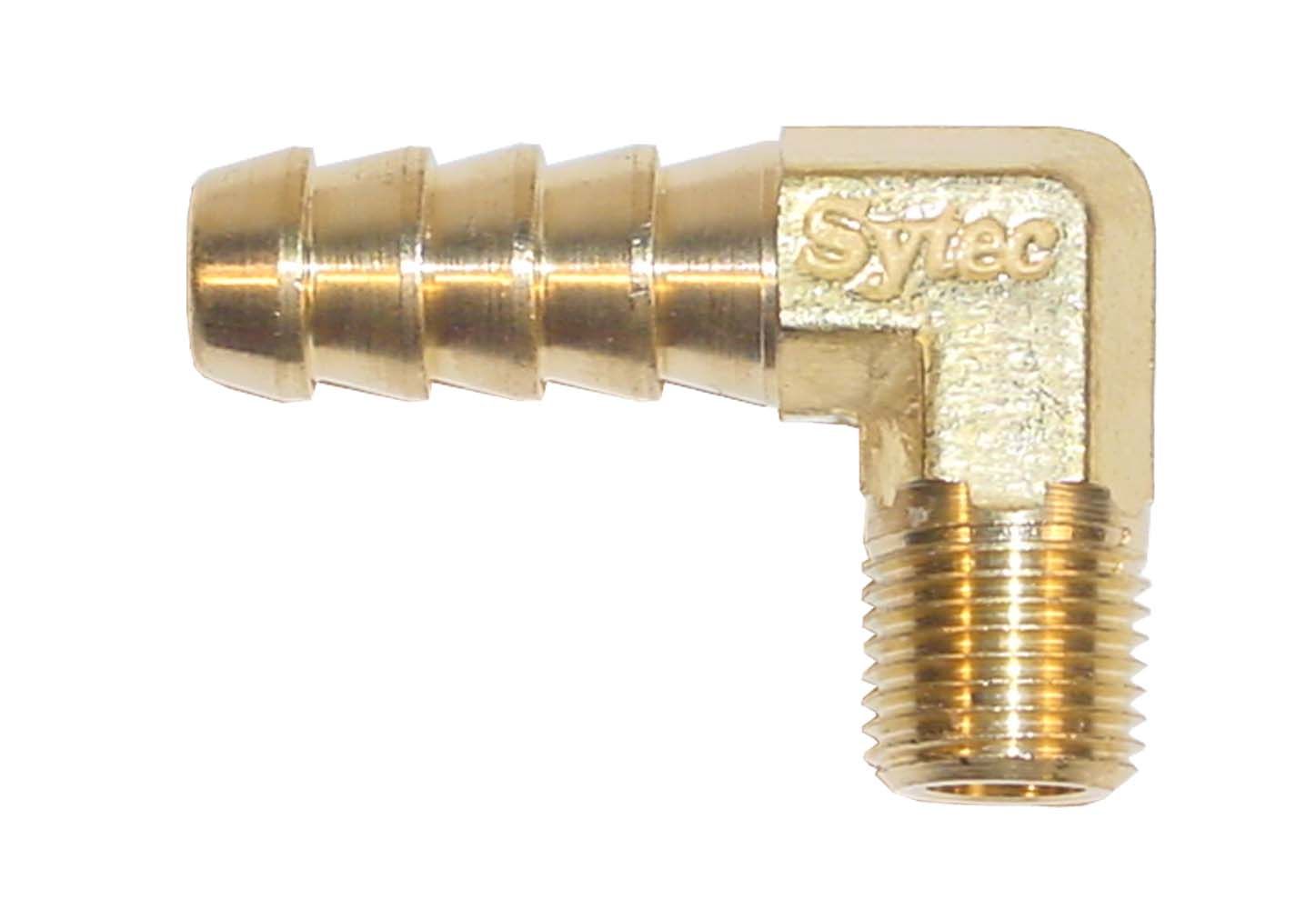

Union FPA9001= 1/8th -6mm or
Union FPA9011 = 1/8th- 8mm
Fuel Hose 6mm ID = ref. 2134.0400
Fuel Hose 8mmID= ref. 2134.0600

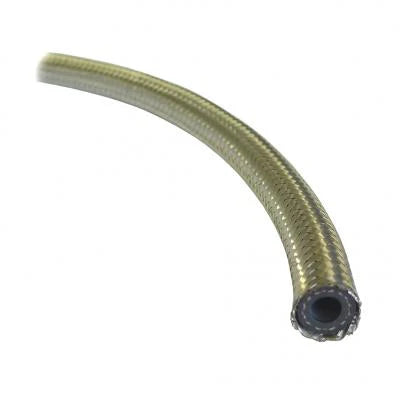

Braided Fuel Hose 6mm ID = ref. BRAIDED01
Braided Fuel Hose 8mmID = ref. BRAIDED02
Fuel Filter Plastic 6mm-8mm : ref. SL-gfe7004
Fuel Union Installation:- When fitting fuel unions, either wrap PTFE tape around the threads or use Loctite 243 to create a fuel proof seal
Positive Shut-Off Valve:- No
Check Valve:- No
Operating Temperature:- -40 F to +180 F
Legal Requirements:- Certified & Complies With EEC 95/54 Requir
Length:- 75mm
Height:- 60mm
Weight:-0.5kg
Please Note:- The product in not suitable for use in the aircraft industry
